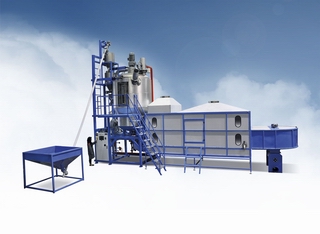

EP-5200B_PRE-EXPANDER

EPRO’s Batch Pre-Expander

Foam Equipment & Consulting is a proud distributor of EPRO EPS foam molding machines. EPRO produces a full line of batch type pre-expanders for Shape and Block applications. From raw material loading through pre-expanding, bead stabilization, and transport, these EPS batch pre-expanders are complete systems. They feature a simple to operate Schneider touch screen that allows operators to quickly input data about the bead being expanded and monitor the process with ease.

  1. Resin hopper capacity ( for different capacities )
  2. Fluid bed dryer with heater
  3. Transfer blower for bead
  4. Resin filling blower
  5. 12” Schneider touch screen
  6. Schneider PLC control system
  7. Resin weight (batch) system
  8. Proportional type pressure control valve
  9. AISI 304 stainless steel steam chamber
  10. Laser cut S-steel steam distributor
  11. Vibration type level controller HITROL
  12. User-friendly control panel
  13. Automatic density control unit and second expansion unit optional



Models EP-500B EP-1000B EP-2200B EP-2500B EP-3500B EP-5200B

Production

Capacity

Kg /Hr

14 g/l 180 ~ 200 360 ~ 400 800 ~ 900 950 ~ 1100 1250 ~ 1400 2000 ~ 2100
16 g/l 200 ~ 250 400 ~ 450 950 ~ 1050 1050 ~ 1250 1450 ~ 1600 2250 ~ 2400
20 g/l 250 ~ 300 520 ~ 600 1200 ~ 1300 1350 ~ 1550 1800 ~ 2000 2800 ~ 3000
25 g/l 350 ~ 400 600 ~ 700 1400 ~ 1600 1700 ~ 1900 2250 ~ 2500
30 g/l   700 ~ 800 1700 ~ 2000
