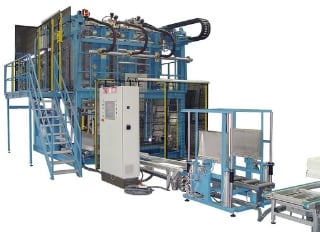

The TVZ machine allows you to produce individual EPS insulation boards of the highest quality, with minimum energy consumption and highest efficiency. The panels can be made with a molded shiplap or tongue-and-groove joint. The EPS board machines quickly adjust thicknesses without any tool modifications.
Linear guidance systems and an open machine base frame allow free access to the mold and a precise, perfectly aligned closing of the machine.
| Machine Model | Number of Boards | Board Dimension L x W | Thickness Range |
|---|---|---|---|
| TVZ 2P | 2 | 1250 x 625 mm | 30 ~ 400 mm |
| TVZ 3P | 3 | 1250 x 625 mm | 30 ~ 300 mm |
| TVZ 4P | 4 | 1250 x 625 mm | 30 ~ 300 mm |
| TVZ 3P S | 3 | 1000 x 500 mm | 30 ~ 300 mm |
| TVZ 3P SR | 3 | 1000 x 500 mm | 30 ~ 450 mm |
| TVZ 140/140 | 1 | 1200 x 1200 mm | 50 ~ 450 mm |
| TVZ 120/120 | 1 or 2 | 1000 x 1000 or 1200 x 1200 mm | 30 ~400 mm |
