Screw Compactors for EPS, XPS and Styrofoam™

TIGER 130 T and 130 B Series

Heger Tiger 130 T

The Heger Tiger 130 T System is designed for small applications.  Providing exceptional value for small applications, the Tiger 130 T is equipped with a dual-function screw for breaking large foam parts into manageable size while introducing the broken materials into the compression tube.

The Heger Tiger 130 T produces continuous high density logs that are approximately 5” square and adjustable in length.

  • High-quality components
  • Efficient operation
  • Small footprint
  • Low operating cost, low maintenance
  • Logo PLC with 7 preset adjustable programs
  • Equipped with castors for mobility

Tiger 130 B 850

The Heger Tiger 130 B 850 is designed for small applications in which large or thick foam parts need processed.  The Heger Tiger 130 is equipped with a prebreaker to quickly break-down large foam parts into smaller particle size for introduction into the compression tube.  The cold-compression technology provides an energy-efficient system to offer the most value for foam material processing.

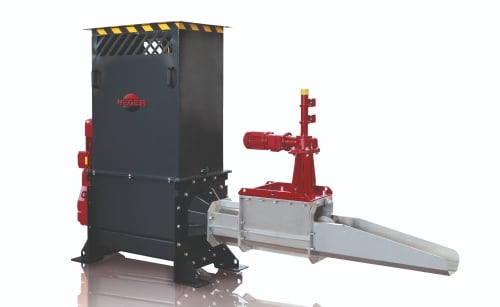

Heger Tiger 200 T and 200 B Series

The Heger Tiger 200 System is designed to meet the needs of mid-sized foam recycling operations.  The Heger Tiger 200 System is available with or without a prebreaker.

Heger Tiger 200 T is capable of processing up to 130 lbs. hour.  The dual-function screw auger breaks foam parts into smaller pieces then conveys the pieces into the compression tube.  A very efficient machine concept provides the ability to make the most out of your foam recycling operation.

Heger Tiger 200 B is designed for processing large foam parts efficiently.  This system is equipped with a prebreaker directly atop the compactor for breaking the large foam parts into smaller pieces.  Once broken, the foam pieces are gravity fed into the screw auger for introduction into the compression tube.  This system is designed to quickly process large foam parts for an efficient operation.  A variety of prebreaker sizes are available to process the largest foam part efficiently.

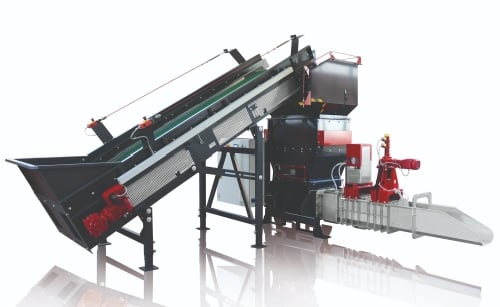

TIGER 300 B series with prebreaker

The Heger Tiger 300 B Series Compacting System is designed for large application foam recycling. The Tiger 300 B System is engineered with quality components for a high-output, energy-efficient foam recycling operation.  Complete with automatic density control, stainless steel compression tube, and self-contained water-cooling sleeve the Tiger 300 System is designed for long-service life and minimal maintenance requirements.

  • Log dimensions: 320 x 320 mm (12-1/2" x 12-1/2")
  • Footprint: 50" x 158" (with optional log holder)
  • Throughput per hour: 180 - 260 lbs or 12 - 17 cubic yards of loose EPS packaging

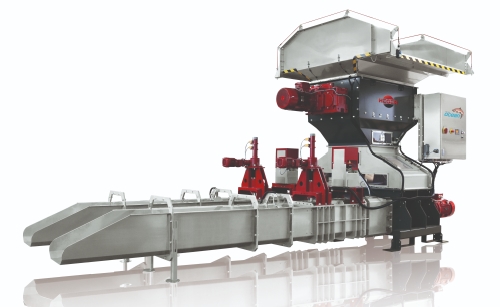

TIGER 400 B series with prebreaker

The Heger Tiger 400 B is the largest stand-alone system available for large foam recycling operations. The robust construct of the German engineered Heger Tiger 400 System is ale to efficiently process large amounts of EPS and XPS materials with low maintenance requirements.  The Heger Tiger 400 System is available with a conveyor feed and/or within a Compression Line System in which a large buffer silo is placed between the prebreaker and compactor for labor minimization.

  • Log dimensions: 400 x 400 mm (15-3/4" x 15-3/4")
  • Footprint: 52" x 182" (with optional log holder)
  • Throughput per hour: 330 - 440 lbs or 22 - 30 cubic yards of loose EPS packaging
